Three-phase Reclosers

GX Series Recloser
Three-phase Reclosers

GX Series Recloser

Proven design rated for 10,000 full load operations
Polymerinsulation provides industry leading reliability
Air insulation for an environmentally friendly design
Minimal maintenance required for the high voltage unit
Web Human Machine Interface (web HMI) software for field configuration
Communication : MODBUS, DNP3.0, DNP3.0,IEC 60870-5-101, IEC 60870-5-104.
Send Inquiry Download

Specifications

Pomanique's GX Series Recloser three-phase, electronically controlled, vacuum-interrupting distribution automation switch provides reliable, economical switching, sectionalizing, advanced metering and automation systems for distribution circuits rated up to 38 kV.

The GX Series Recloser combines solid insulation vacuum interrupters with a reliable, lightweight operating mechanism that utilizes a magnetic actuator to provide a lifetime of trouble-free operation. The solid polymer system does not rely on a gaseous, liquid or foam dielectric. The GX Series Recloser is highly resistant to ozone, oxygen, moisture, contamination and ultraviolet light.

Switch operations are programmed in an electronic control with accurate characteristics and a host of advanced features. When system requirements change, program settings are easily altered with no sacrifice of accuracy or consistency.

Pomanique's reclosers meet all the requirements for outdoor use in accordance with IEEE C37.60 and IEC 62271-111.

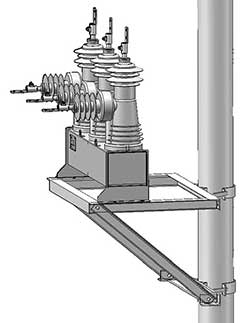

GX recloser

15.5 kV ratings

ModelGX15-630-12.5-NGX15-630-16-NGX15-800-12.5-NGX15-800-16-N
Rated continuous current630630800800
Rated duration of short-circuit3333
Rated short-circuit breaking current12.51612.516
Rated short-circuit making current31.54031.540
Rated lightning impulse withstand voltage110110110110
Rated short-duration P.F. withstand voltage50505050
Impedance μΩ between connections50505050
Creepage distance, phase-to-earth820820820820
Clearance, phase-to-phase320320320320
Minimum clearance, phase-to-earth270270270270
Weight130130130130
Line charging current2222
Cable charging current10101010
Max. interrupting time / max. closing time60 / 6060 / 6060 / 6060 / 60

27 kV ratings

ModelGX27-630-12.5-NGX27-630-16-NGX27-800-12.5-NGX27-800-16-N
Rated continuous current630630800800
Rated duration of short-circuit3333
Rated short-circuit breaking current12.51612.516
Rated short-circuit making current31.54031.540
Rated lightning impulse withstand voltage125125125125
Rated short-duration P.F. withstand voltage60606060
Impedance μΩ between connections50505050
Creepage distance, phase-to-earth820820820820
Clearance, phase-to-phase320320320320
Minimum clearance, phase-to-earth270270270270
Weight140140140140
Line charging current5555
Cable charging current25252525
Max. interrupting time / max. closing time60 / 6060 / 6060 / 6060 / 60

38 kV ratings

ModelGX38-630-12.5-NGX38-630-16-NGX38-800-12.5-NGX38-800-16-N
Rated continuous current630630800800
Rated duration of short-circuit3333
Rated short-circuit breaking current12.51612.516
Rated short-circuit making current31.54031.540
Rated lightning impulse withstand voltage170170170170
Rated short-duration P.F. withstand voltage70707070
Impedance μΩ between connections50505050
Creepage distance, phase-to-earth1250125012501250
Clearance, phase-to-phase320320320320
Minimum clearance, phase-to-earth350350350350
Weight150150150150
Line charging current5555
Cable charging current40404040
Max. interrupting time / max. closing time60 / 6060 / 6060 / 6060 / 60
Manufacturing Environment

See how orders move from review to dispatch.

Reception, production, testing and shipment areas are organized to keep technical requirements, work progress and delivery records aligned.
Workplace & Customer Reception

Workplace & Customer Reception

Visitors and project teams have a clear place to review requirements, drawings and delivery details before work moves forward.
Organized Production Lines

Organized Production Lines

Defined work areas and orderly material flow help teams keep assemblies, components and order information aligned.
Testing & Verification

Testing & Verification

Routine checks and functional verification are completed against approved requirements before release.
Shipment & Delivery

Shipment & Delivery

Finished orders are checked, protected and organized for traceable handover and coordinated dispatch.
Qualification & Certification

Built for recognised standards

Our documentation package supports project review with internationally recognised safety, quality and environmental marks.
Product Documents

Technical files for your review

Access the latest catalogue, technical parameters and certification files before you finalise your specification.
Go to Download Center
Auto Recloser Catalogue PDF · Series technical data
Technical Support

Product questions, answered

Clear guidance on selection, documentation, customization and project delivery.
Please provide the application, system rated voltage and frequency, continuous load current, short-circuit level, insulation level or BIL, and the required operating duty. Also include indoor or outdoor installation, altitude, ambient temperature, pollution level, control voltage, communication requirements, quantity, destination market and applicable standard. A single-line diagram, existing nameplate or project specification will make the review more accurate.
A recloser is generally used for automatic fault interruption and service restoration on distribution feeders. A circuit breaker provides repeated fault interruption, a load break switch is intended for rated-load switching within its specified capability, a disconnector provides an isolation point, and a fuse provides single-operation overcurrent protection. The final choice must be based on load current, fault level, protection coordination, switching frequency, installation method and operating philosophy.
Confirm the voltage class, frequency, rated current, short-circuit breaking and making duties, insulation level, creepage distance, mechanical or electrical endurance, enclosure protection, control supply and auxiliary contacts. The applicable IEC, IEEE, ANSI, GB or project-specific requirement should be stated in the inquiry. The approved data sheet and drawing, rather than only a general product family name, define the final supply.
Yes, a technical comparison can be made when sufficient information is available. Please send the existing model and nameplate, general arrangement and mounting dimensions, terminal interfaces, wiring diagram, interlocks, operating mechanism and electrical ratings. Similar voltage and current ratings do not by themselves confirm mechanical or electrical interchangeability, so approval is required before replacement.
Selection should consider the system grounding method, maximum continuous operating voltage, temporary overvoltage, required protective level, system insulation level, altitude, pollution severity and creepage distance. Mechanical loading, housing material and installation orientation also matter for outdoor equipment. Provide the system and site data so insulation coordination can be reviewed as a complete set.
Customization can be evaluated according to technical feasibility, validation requirements and order quantity. Typical requests include labels and packaging, terminal arrangements, mounting dimensions, control voltages, transformer ratios, accessories, communication functions and project documentation. Customized production should begin only after the technical specification and approved drawings are confirmed by both parties.
